Interface Design

The Interface Design section describes how users and system components interact within the Football Player Absence Tracking System.

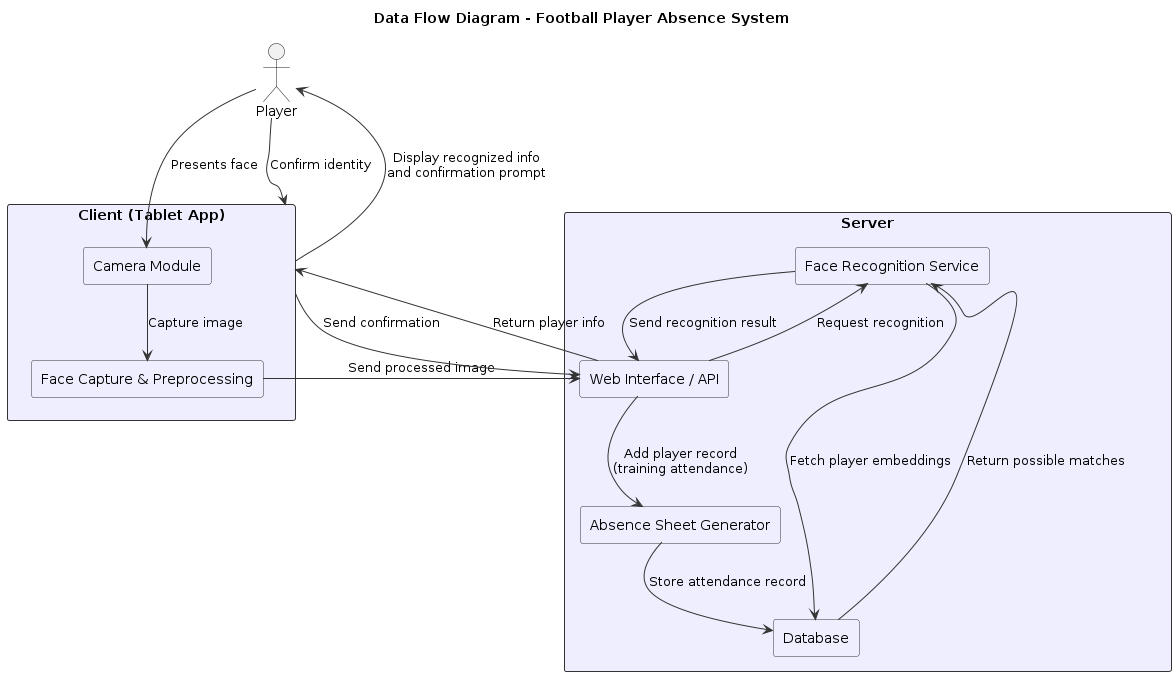

Data Flow Diagram

@startuml title Data Flow Diagram - Football Player Absence System !define RECTANGLE class skinparam rectangle { BackgroundColor #EEF BorderColor #333 } skinparam arrow { Color #333 } actor "Player" as P rectangle "Client (Tablet App)" as Client { rectangle "Camera Module" as Camera rectangle "Face Capture & Preprocessing" as Preprocess } rectangle "Server" as Server { rectangle "Face Recognition Service" as FaceRec rectangle "Database" as DB rectangle "Web Interface / API" as API rectangle "Absence Sheet Generator" as Sheet } P --> Camera : Presents face Camera --> Preprocess : Capture image Preprocess --> API : Send processed image API --> FaceRec : Request recognition FaceRec --> DB : Fetch player embeddings DB --> FaceRec : Return possible matches FaceRec --> API : Send recognition result API --> Client : Return player info Client --> P : Display recognized info\nand confirmation prompt P --> Client : Confirm identity Client --> API : Send confirmation API --> Sheet : Add player record\n(training attendance) Sheet --> DB : Store attendance record @enduml

Data Model Design

players

Field

Type

Description

id

INT (PK)

Unique player ID

name

TEXT

Player’s full name

team

TEXT

Team or group name

image_url

TEXT

Path to stored face image

face_encoding

BLOB/JSON

Serialized facial embedding

created_at

DATETIME

Registration timestamp

attendance

Field

Type

Description

id

INT (PK)

Unique record ID

player_id

INT (FK)

Reference to players table

timestamp

DATETIME

Recognition time

status

TEXT

Example: “Present”

session_id

TEXT

Optional session identifier
